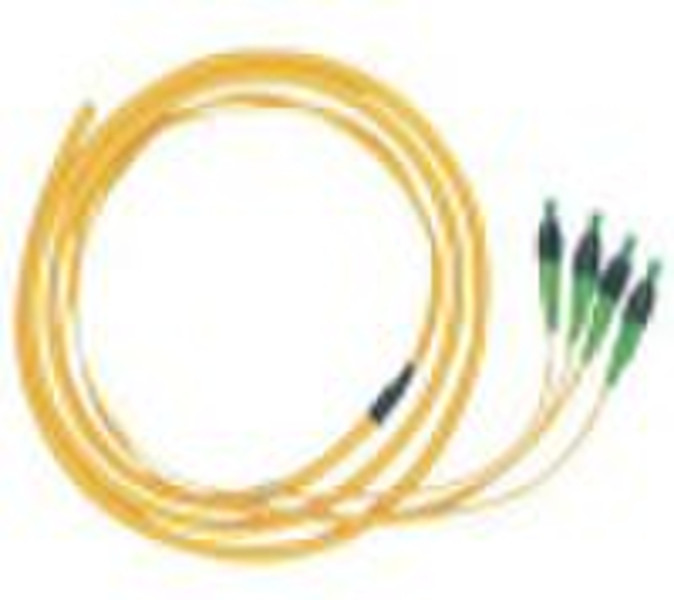

Fiber Optical Pigtail
Rena Qin
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | KHX |
| Model Number | KHXFO-3001 |
DescriptionFiber pigtail is a piece of fiber optic cable with only one fiber optic connector on one side of the cable, there are single mode and multimode fiber optic pigtails, which can be with various types of fiber optic terminations such as SC, FC, ST, LC, MU, MT-RJ, MTP, MPO, etc Application:Telecommunication networksCATV NetworksData System NetworksActive device terminationLocal Area NetworksFeatures:Fiber type: 9/125, 62.5/125, 50/125Simplex or Duplex0.9mm, 2.0mm, 3.0mmFerrule End-Face: PC,UPC,APCTechnology Data:Insertion loss: ≤0.20dB(UPC), ≤0.30dB(APC)Return loss: UPC over50dB, APC over 60dBOperation wavelength:1310nm or 1550nmRadius of curvature: 10 to 25nmCurvature eccentricity: below 50umTemperature range: -40 -- +80degree centigrade
Delivery terms and packaging
Packaging Detail: As per customer's requirements Delivery Detail: 15-20 days after receipt confirmed order
Port: Ningbo/Shanghai
